Solvent stripper

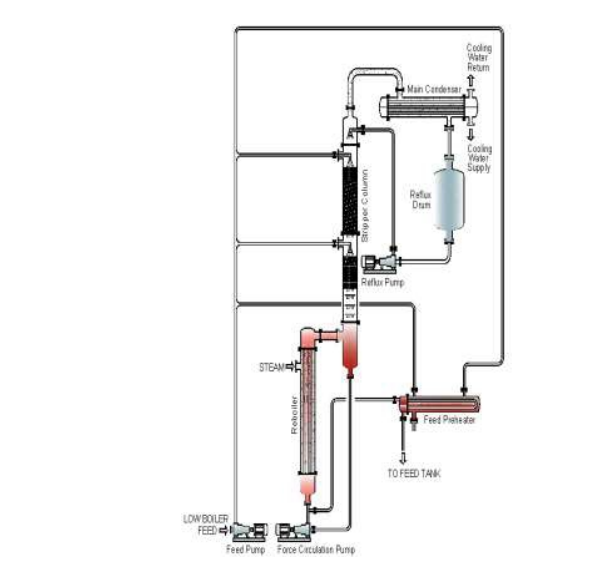

The product which contain solvents taken to re-boiler and make it to raise the temperature according to the boiling point of the solvent and it is circulated to the bottom vessel the evaporation takes place.by the stripper packing the vapour will be passed and solvent recovery will come to solvent holding tank after condensation. We can make reflux to increase the solvent % more, the product after recovery will take into MEE or ETP
The product which contain solvents taken to re-boiler and make it to raise the temperature according to the boiling point of the solvent and it is circulated to the bottom vessel the evaporation takes place.by the stripper packing the vapour will be passed and solvent recovery will come to solvent holding tank after condensation. We can make reflux to increase the solvent % more, the product after recovery will take into MEE or ETP
EX: Ethanol, Methanol….etc,
Key points about Forced Circulation Evaporators (PII FC Evaporators) and their application:
- Equipment's used stripper, stripper bottom vessel, solvent holding vessel, condenser, pre-heater, re-boiler. .
- For re-circulation centrifugal pumps are used
- For feeding, reflux centrifugal pump with seals are used.
- PII Can design of solvent stripper with thermic fluid, steam, hot water. Other major utilities involved is cooling water, power
- PII Manufacturing range: 5 KLPD to 500 KLPD.
- PII can manufacturer solvent stripper with below MOC.
- a )SS316
- b) SS304
- c) Duplex
- d) Super duplex
- e) Titanium
- PII can also manufacturer the stripper in other MOC also or combination of above given MOC.
- Packing in the stripper will be SS316 (Pole rings & sleeve trays).
